Description

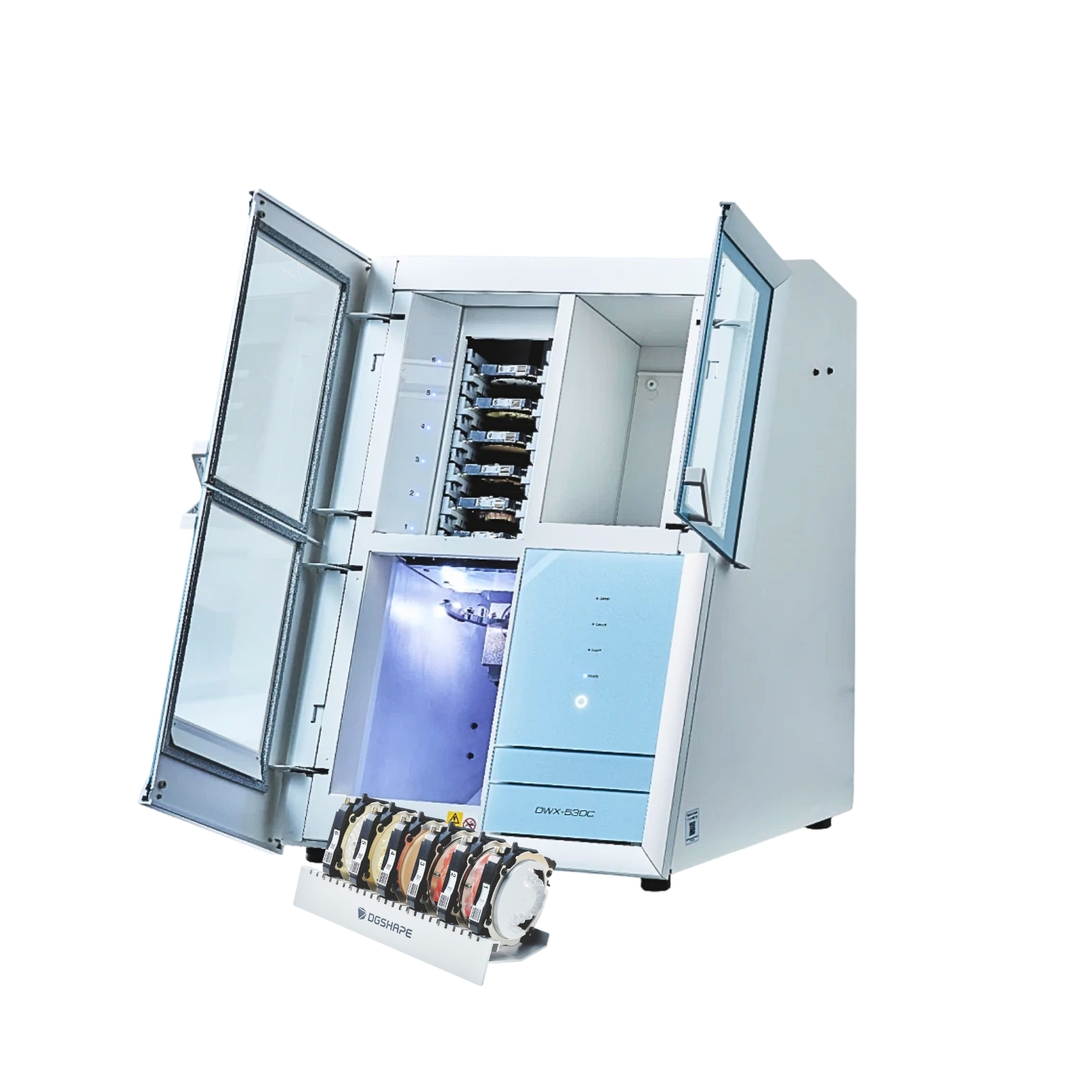

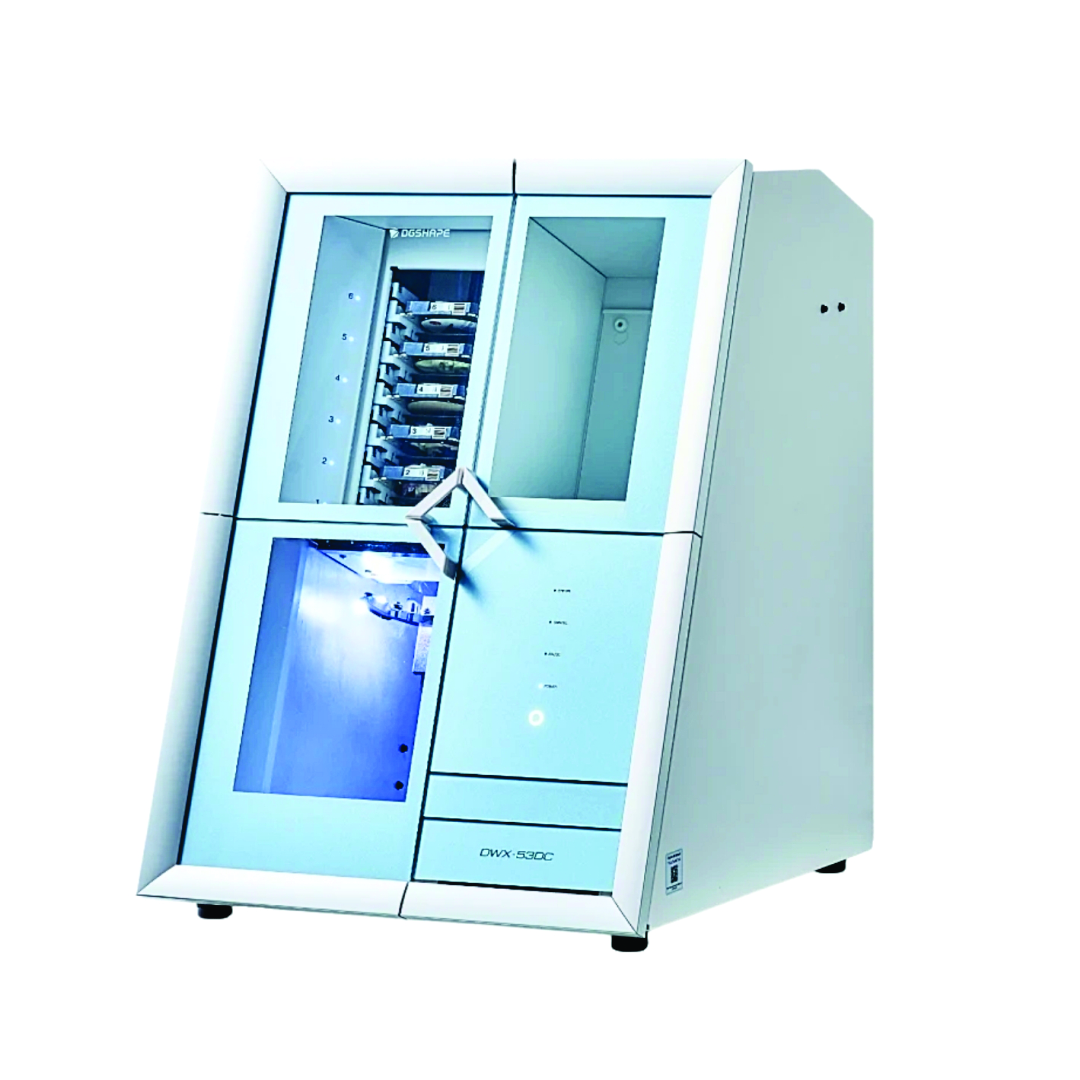

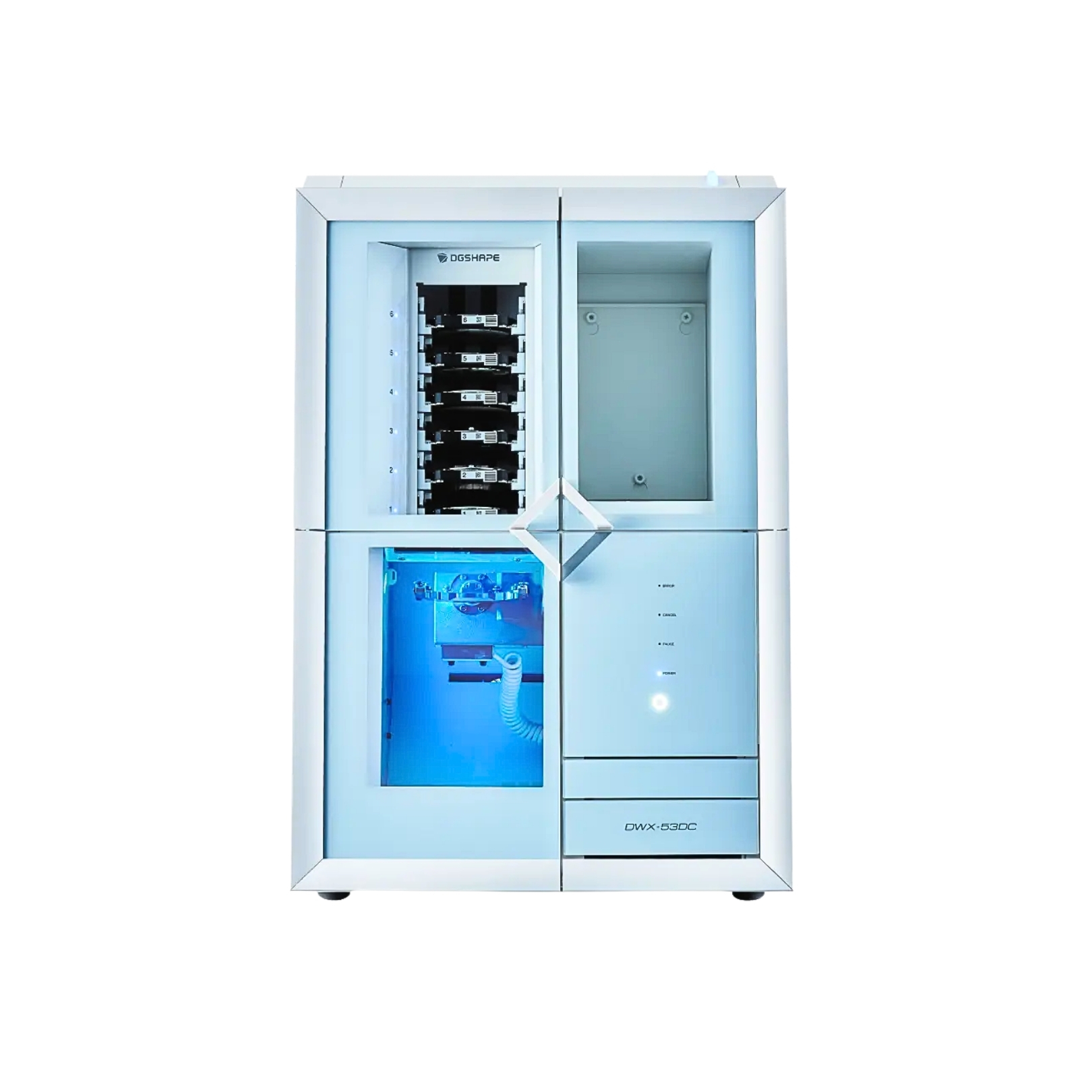

| DWX-53DC | ||
| Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK Gypsum, Glass Fiber reinforced resin, CoCr sinter metal, polycarbonate | |
| Loadable workpiece shape | Step section: | 98.5 mm (diameter), height 10+_0.3 mm |
| Body section: | 95 mm (diameter), height max. 35 mm Pin diameter: 6 mm |
|
| Pin diameter: | 6 mm | |
| Loadable workpiece weight | 850 g or less | |
| Number of adapters housed | 6 | |
| Operating Speed | XY | ~3000 mm/min |
| z | ~2700 mm/min | |
| Spindle motor | Brushless DC Motor | |
| Spindle rotating speed | 6,000 to 30,000 rpm | |
| Rotary axis travel angle | A: | ±360° |
| B: | ±35° | |
| Number of burs housed | 15 | |
| Attachable bur | Shank diameter: | 4 mm |
| Length: | 40 to 55 mm | |
| Compatible compressed air | 0.2 MPa | |
| Interface | USB | |
| Control command set | RML-1, NC code | |
| Power requirements | AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1) |
|
| Power consumption | Approx. 200 W | |
| Operating noise | During operation: | 70 dB (A) or less (when not cutting), |
| During standby: | 45 dB (A) or less | |
| External dimensions | Width x Depth x Height: | 25.6 x 30.1 x 33.0 in. (598 x 763 x 831 mm) |
| Weight: | 120 kg (265 lbs.) | |
| Installation environment | Indoor use, Altitude: Up to 2,000m (6,562 ft.), Temperature: 5 to 40 ℃ (41 to 104°F), Humidity: 35 to 80 % RH (no condensation), Ambient pollution degree: 2 (as specified by IEC 60664-1), Short-term temporaty overvoltage: 1440 V, Long-term temporaty overvoltage: 490 V | |
| Included items | Power cord, Safety information, USB cable, quick access guide, Detection Pin, automatic correction jig, torque screwdriver, T-shaped hexagonal Screwdriver, L-shaped hexagonal wrench, open edge adapter, adapter rack, pin type workpiece adapter, milling bur, tablet holder, milling bur holder, regulator, barcode level | |
System requirements for USB connection
| Operating system (OS)* | Windows® 7/8/8.1/10 (32 or 64 bit) |
| Optical drive | CD-ROM drive |
| USB cable | Use the included USB cable |
