Description

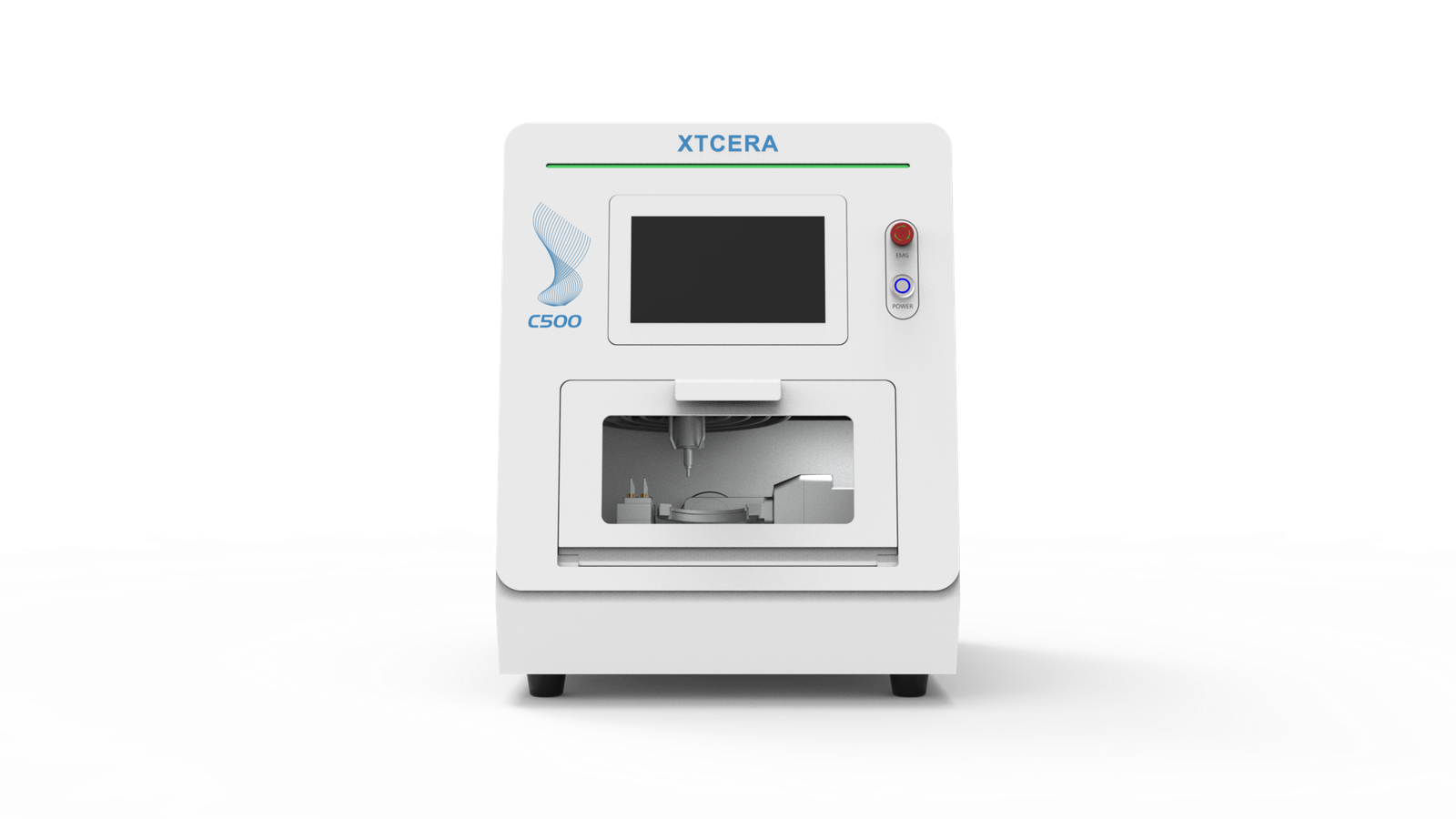

AGKEM XTCERA X-Mill C500 is an advanced all-in-one chairside dental milling solution engineered to combine precision, versatility, and intelligent operation in a compact design. Its 5-axis milling system, featuring 360° A-axis rotation and ±30° B-axis movement, supports the fabrication of complex dental restorations with accurate positioning and detailed milling capabilities.
Powered by a 0.7 kW air-cooled spindle with a maximum speed of 60,000 RPM, the X-Mill C500 offers 3 μm repeat positioning accuracy and a maximum XYZ feeding speed of 6,000 mm/min. Its wet and dry milling capability allows dental professionals to process multiple materials using a single machine, with a convenient one-button function for switching between milling modes.
Key Features
-
5-Axis Precision Milling – Supports complex restoration geometries with 360° A-axis rotation and ±30° B-axis movement.
-
2-in-1 Wet & Dry Milling – One-button switching between wet and dry milling functions.
-
0.7 kW High-Speed Spindle – Maximum spindle speed of 60,000 RPM.
-
3 μm Repeat Positioning Accuracy – Supports consistent precision during dental milling.
-
Built-In Auto-Calibration – Helps simplify machine calibration and setup.
-
10-Tool Automatic Changer – Electric tool-changing system for convenient operation.
-
Low Air Pressure Requirement – Designed to operate with an air supply pressure of at least 0.2 MPa.
-
Remote-Control Capability – Supports smarter machine operation.
-
Multi-Material Compatibility – Processes zirconia, glass ceramic, premill abutments, PMMA, and wax.
-
Compact Chairside Design – Suitable for clinics and dental laboratories with limited installation space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | XTCERA |
| Model | X-Mill C500 |
| Machine Type | 5-Axis Dental Milling Machine |
| Milling Mode | Wet & Dry |
| Number of Axes | 5 |
| Spindle Power | 0.7 kW |
| Maximum Spindle Speed | 60,000 RPM |
| Repeat Positioning Accuracy | 3 μm |
| Maximum Feeding Speed | XYZ: 6,000 mm/min |
| X-Axis Travel | 151 mm |
| Y-Axis Travel | 100 mm |
| Z-Axis Travel | 107 mm |
| A-Axis Rotation | 360° |
| B-Axis Rotation | ±30° |
| Tool Capacity | 10 Tools |
| Tool Changing System | Automatic Tool Changer (ATC) |
| Tool Changing Mechanism | Electric |
| Spindle Cooling | Air Cooling |
| Auto-Calibration | Built-In |
| Wet/Dry Switching | One-Button Function |
| Remote Control | Supported |
| Air Supply Pressure | ≥0.2 MPa |
| Input Voltage | AC 220 V |
| Dimensions | 520 × 732 × 666 mm |
| Net Weight | 140 kg |
Compatible Milling Materials
| Material | Typical Dental Applications |
|---|---|
| Zirconia | Crowns, bridges, and compatible zirconia restorations |
| Glass Ceramic | Veneers, inlays, onlays, and crowns |
| Premill Abutments | Customized implant abutment restorations |
| PMMA | Temporary crowns, bridges, and dental prosthetic components |
| Wax | Wax patterns for dental laboratory workflows |
Millable Dental Applications
| Category | Supported Restorations |
|---|---|
| Fixed Restorations | Crowns and bridges |
| Indirect Restorations | Inlays and onlays |
| Aesthetic Restorations | Veneers |
| Implant Prosthetics | Abutment crowns |
| Orthodontic Applications | Splints and retainers |
| Removable Prosthetics | Removable dentures |
Approximate Milling Times
| Material / Restoration | Milling Time |
|---|---|
| Zirconia | 10 minutes |
| Glass Ceramic | 20 minutes |
| Premill Abutment | 25 minutes |
Intelligent Milling & Automation Features
| Feature | Benefit |
|---|---|
| Built-In Auto-Calibration | Supports accurate setup and consistent machine positioning |
| One-Button Wet/Dry Switching | Simplifies switching between milling modes |
| Electric Tool Changing | Supports automatic tool replacement |
| 10-Tool Magazine | Accommodates multiple milling tools |
| Remote-Control Capability | Allows more flexible machine operation |
| 5-Axis Milling | Supports complex dental restoration designs |
| Air-Cooled Spindle | Provides spindle cooling during operation |
| Low-Pressure Compatibility | Supports operation at a specified air pressure of ≥0.2 MPa |
Ideal For
The XTCERA X-Mill C500 is designed for:
-
Dental Clinics: Chairside CAD/CAM restoration workflows.
-
Dental Laboratories: Manufacturing crowns, bridges, veneers, and other restorations.
-
Digital Dentistry Centers: Multi-material wet and dry milling applications.
-
CAD/CAM Milling Centers: Precision manufacturing of compatible dental prosthetic components.
