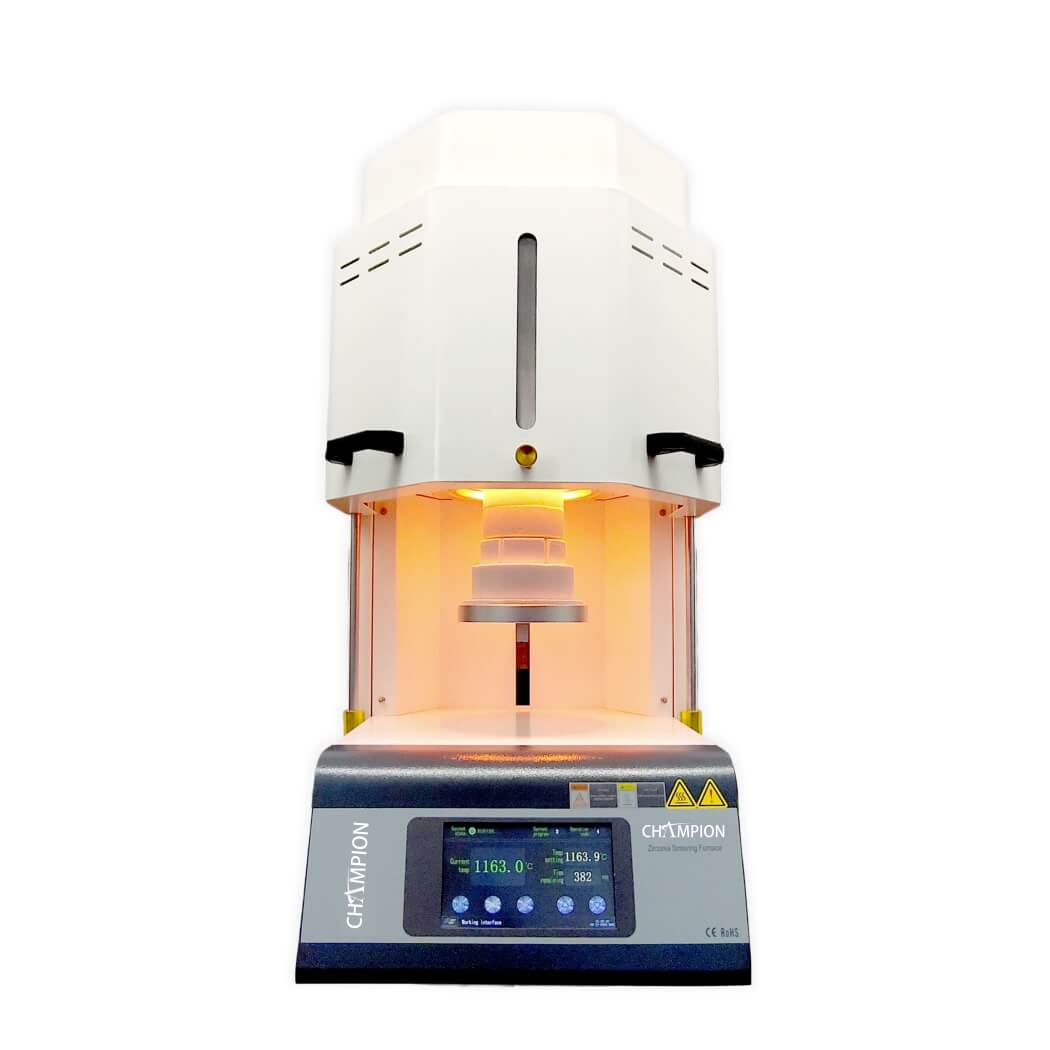

SINTERING FURNACE ZTCF-30B

High-Temperature Furnace
Max Temp. 1700 °C

Description

 Fast/Speed Zirconia Sintering Furnace

ZTCF-30B plus



Fast zirconia sintering furnace 30B Plus has integrated speed and standard sintering function in one. The sinter speed of the speed sintering program is 5 times higher than the ordinary sintering furnace, and the sintering effect is perfect, the temperature control is accurate, the internal temperature of the furnace is uniform, and the automatic lifting tray design has good sealing performance. At the same time, there is also a program with ordinary sintering speed, which can be operated flexibly according to individual actual conditions and improve work efficiency.

Ⅰ. Technical date



Fast Sintering Time 65 min (including heating, keeping warm, cooling)
Regular Program Can stack 3 layers of the crucible and sinter 150 units teeth;
Max.Temperature 1730℃
Temperature Accuracy ±1℃
Touch Screen 7” TFT Color
Power 3KW
Voltage 220V  50/60HZ

110V  50/60HZ

Heating Element High purity heater especially for dentistry
Regular Program No.1
Fast Program No.2
Cleaning Program No.40
Total Program No. 40 programs, with power-off memory function
Chamber Size Ø 110*120 mm
Size 590*470*850 mm (L*W*H)
Net Weight 85 KG

Ⅱ. Features

1、 The fast sintering program takes only 65 mins (including heating, keeping warm, and cooling);
2、 In the regular program, you can stack 3 layers of crucibles and sinter up to 150 units;
3、 High-purity and pollution-free dental silicon molybdenum rods;
4、 PID intelligent temperature control system accurately controls the temperature. The actual temperature accuracy is ±1℃;
5、 Total can store 40 Programs;
6、 7″inch color touch screen, display all parameters, easy to modify parameters;
7、 Green environmental friendly thermal insulation materials with excellent performance make the temperature more stable;
8、 With memory function, when the power is off and on again, it can automatically start from the beginning of the stage where the power is off.

Ⅲ. Notices

  • When you received the new furnace before you start to use them, please use the No.40 program to sinter the new crucible, zirconia beads, and furnaces first.
  • To avoid the crucible crush, please put the crucible cover on the sintered base then put the crucible on the cover.
  • There are 3 programs had been set, when you need to set up the new program, please click the windows button, and press the third line program editor to enter the program edit screen.
  • When the furnace has not been used for a while, you want to use it again, please use the No.40 program to clean the furnace first.
  • Don’t forget to cover the crucible when you start to run the program.
