Description
PRODUCT SPECIFICATION
Model Name/Number |

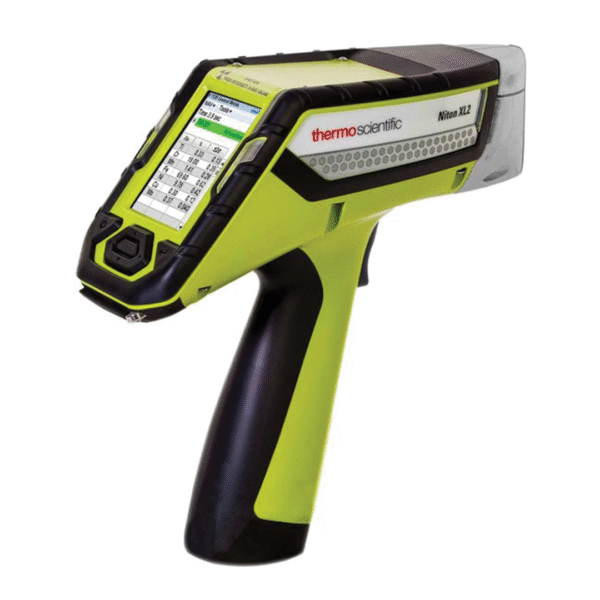

XL2 980 Plus
|
Brand |
Thermo Scientific
|
Detector Type |
Silicon drift detector (SDD) Detector ProGuard protection included
|
Dimension |
10 x 10.8 x 3.9 inch
|
Display Type |
Fixed angle,color,resistive touchscreen display
|
Weight |
1.53 kg with battery
|
Power Requirements |
7.4V lithium-ion battery,or 12V DC,3A,36W power supply
|
Minimum Temperature |
-10 DegreeC to 50 DegreeC
|
X-Ray Source |
X-Ray Tube: Ag anode (6-45kV,1-200uA,2W max)
|
Spot Size |
8 mm collimation
|
Analytical Range |
Mg-U
|
Calibration Modes |
General Metals,Precious Metals,Coatings,Mining,Soils,Electronic Alloys,Plastics,Etc.
|
Libraries |
Default alloy libraries based on SAE,AISI,ASTM,AA standards
|
System Check |
Built-in standardization via automatic system check
|
IP Rating |
IP54 (splash and dust proof)
|
Operating Environment |
Humidity: 0% to 80% relative humidity non-condensing
|
Camera |
Integrated CCD micro camera for locating and recording measurement positions
|
Global Positioning System |
Optional external GPS (via Bluetooth)
|
Bluetooth |
Supports print functionality,external GPS connectivity and barcode reader
|
Memory / Data Storage |
64 MB internal system memory / 128 MB internal user storage Stores approximately 10,000 readings
|
Data Entry |
Touchscreen keyboard User customizable data entry Optional wireless remote barcode reader
|
Data Transfer |
USB,Bluetooth,and RS-232 serial communication
|
Operating System |
Proprietary
|
Support Software |
Niton Data Transfer (NDT) PC software
|
Security |
Password-protected user security
|
Compliance |
CE,RoHS,FCC,Industry Canada,Safety to IEC 61010-1,UL 61010-1
|
