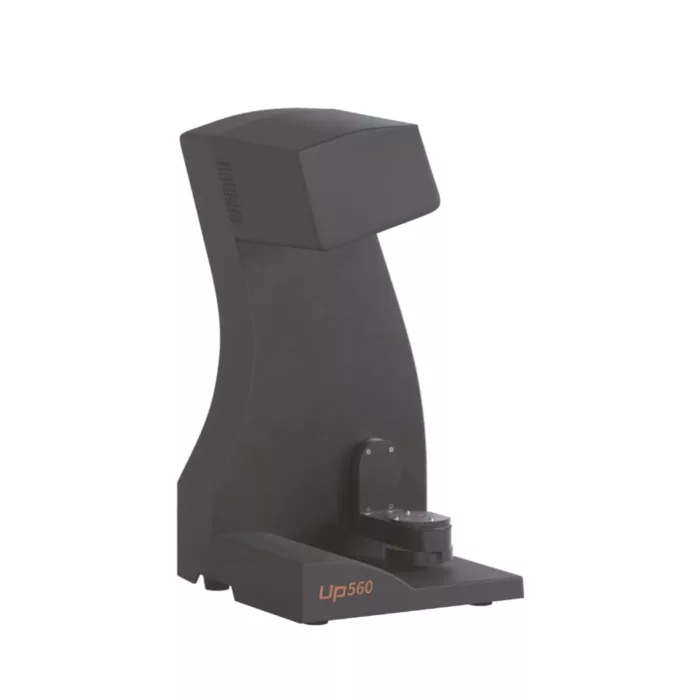

UP560 dental scanner is self researched and developed by UP3D Tech, which is multi-functional, capable of scanning different kinds of restorations. Combining fast scanning speed and high precision scanning, all the requirements from the dental laboratories can be fullfilled with only one scanner.


  • Open System

Support PLY format, 3shape, exocad import directly.

  • True Color Texture Scan

For RPD design.

  • Full Arch Implant Scan in One Time

No need to unscrew the abutment, significantly improving the scanning efficiency of the implant restoration.

Model                                      UP560
Dimension                             285x300x556mm
Weight                                    10kg
Cameras                                 2×3 mega pixels
Accuracy                                 6 microns
Projector                                Customized blue light, supports multi-color scan
Interface                                USB 3.0
Output format                      STL, UM, PLY, OBJ
Power supply                        AC110-240V, 50HZ
Axis quantity                        2
Texture mode                       Point cloud colorization
Structure                               Open
Feature                                  Unsegmented model scan
Scanning method                Non-contact blue light scan
